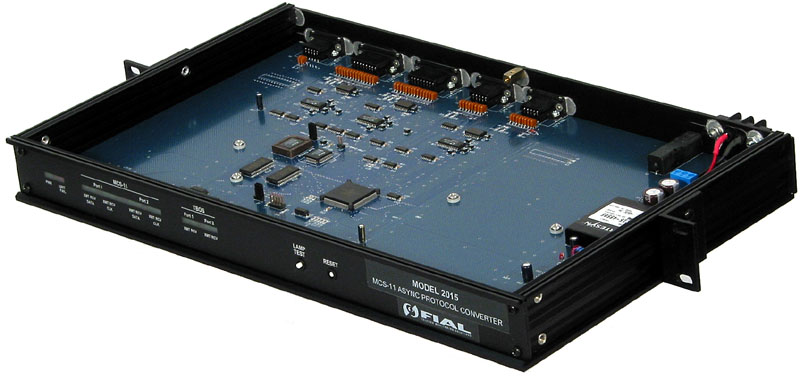

2015 Protocol Converter, LSP to MCS-11
Robust Low Speed Protocol (LSP)
Bi-directional conversion of Low Speed Protocol (LSP) (one connection) to MCS-11 protocol (one or two connections); embedded or Windows configuration program; 1 RU high; multiple rack mounting positions; 18 to 56 VDC floating power supply
| Model 2015 Characteristics | |
| MCS-11 Channel Interfaces | |
| Two MCS-11 ports (bridging on or off) 15 pin female D-Sub (DB15F) shielded One or two RSSs |
300 to 64,000 bps Synchronous RS-422, DTE |
| Low Speed Protocol (LSP) Channel Interfa | |
| One communication port 9 pin female D-Sub (DB9F) shielded Communicates with up to twelve 2315s One MCS-11 RSS per six 2315s |
150 to 64,000 bps (user selectable) Asynchronous RS-232 |
| Craft Configuration Port | |
| 9 pin female D-Sub (DB9F) shielded | RS-232, ASCII, 4,800 baud 8/N/1, no flow control Windows or embedded configuration |
| LED Indicators | |
| Unit power and unit fail status Port activity |
|
| Power | |
| Input Power Range Power Consumption Power Connection |
18 to 56 VDC, floating 3 Watts Barrier Strip, two #6 screws (separate chassis ground strap) |
| Environmental | |
| Operating Temperature Humidity Range Storage Temperature |
0 to +50° C 5% to 95%, Non-condensing -40 to +70<0> C |
| Physical Characteristics | |
| Shelf Size Rack Mounting Shelf Weight |
1.75” H (1 RU), 19” W, 11” D Flush, 2” or 5 1/8” projection 5 pounds |
