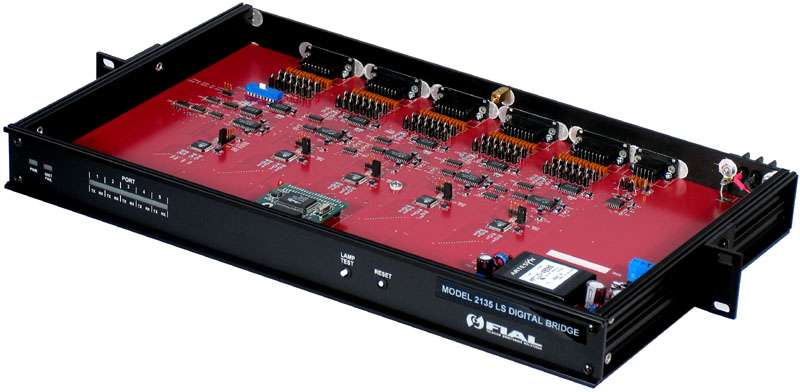

2135 Five Port Data Bridge, LSP

Key Features:

Robust Low Speed Protocol (LSP)

5 Port Data Bridge

Erred Packet Suppression

Ideal for Noisy Data Channels

Interfaces to 2015 or 2315

Interfaces to Low Speed Modems

Interfaces to Low Speed Data Ports

Wide Range DC Power Input

Proven LSP Compatibility

Up to five way bi-directional bridging of Low Speed Protocol (LSP) protocol; multiple bridge concatenation for bridging beyond five ports; no configuration required; 1 RU high; multiple rack mounting positions; 18 to 56 VDC floating power supply

Model 2135 Characteristics

Low Speed Protocol (LSP) Channel Interfaces
Five communication ports 15 pin female D-Sub (DB15F) shielded	150 baud (other rates available from factory) RS-232, Asynchronous 8/N/1, no flow control

LED Indicators
	Unit power and unit fail status Port activity

Power
Input Power Range Power Consumption Power Connection	18 to 56 VDC, floating 4 Watts Barrier Strip, two #6 screws (separate chassis ground strap)

Environmental
Operating Temperature Humidity Range Storage Temperature	0 to +50° C 5% to 95%, Non-condensing -40 to +70° C

Physical Characteristics
Shelf Size Rack Mounting Shelf Weight	1.75” H (1 RU), 19” W, 11” D Flush, 2” or 5 1/8” projection 6 pounds
